SBD20C45F, SBD20C45T - 45V SCHOTTKY RECTIFIER

SBD20C45F Description

SBD20C45T/F_Datasheet 20A, 45V SCHOTTKY RECTIFIER .
SBD20C45T/F is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanced.

SBD20C45F Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low Forward Voltage Drop ∗ 125°C Operating Junction Temperature ORDERING INFORMATION Part No. SBD20C45T SBD20C45F Package TO-220-3L TO-220F-3L Marking SBD20C45T SBD20C45F Material Pb free Pb free ABSO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBD20C45F, SBD20C45T. Please refer to the document for exact specifications by model.

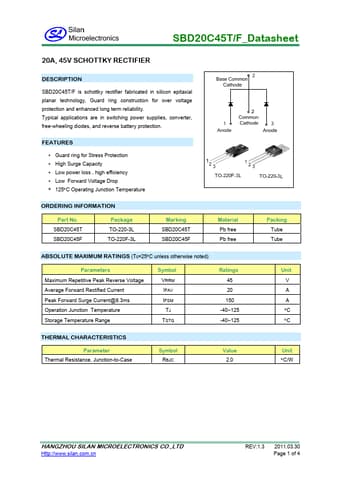

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBD20C45F, SBD20C45T
Manufacturer
Silan Microelectronics
File Size
284.79 KB
Datasheet
SBD20C45T-SilanMicroelectronics.pdf
Description
45V SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBD20C45F, SBD20C45T.
Please refer to the document for exact specifications by model.
