SBD20C100T - 100V SCHOTTKY RECTIFIER

SBD20C100T Description

SBD20C100T/F_Datasheet 20A, 100V SCHOTTKY RECTIFIER GENERAL .
SBD20C100T/F is schottky rectifier fabricated in silicon epitaxial planar technology.

SBD20C100T Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low forward voltage drop ORDERING SPECIFICATIONS Part No. SBD20C100T SBD20C100F Package TO-220-3L TO-220F-3L Marking SBD20C100T SBD20C100F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM

📥 Download Datasheet

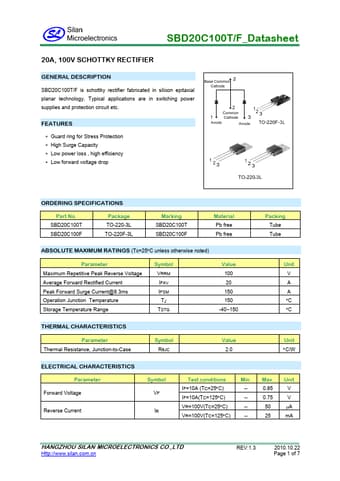

Preview of SBD20C100T PDF
datasheet Preview Page 2 datasheet Preview Page 3
