SiT5349 - Ultra-precision Super-TCXO

SiTime

📥 Download Datasheet

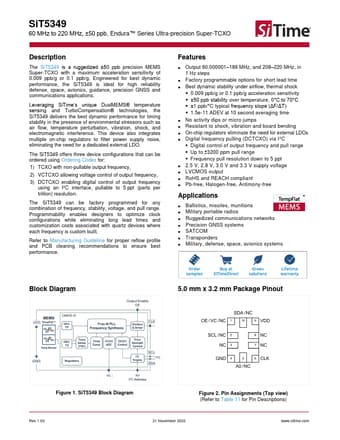

SiT5349 Datasheet Preview — Preview of SiT5349 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SiT5349
Manufacturer	SiTime
File Size	1.91 MB
Description	Ultra-precision Super-TCXO
Datasheet	SiT5349-SiTime.pdf

SiT5349 Product details

Description

The SiT5349 is a ruggedized ±50 ppb precision MEMS Super-TCXO with a maximum acceleration sensitivity of 0.009 ppb/g or 0.1 ppb/g.

Features

Output 60.000001.
189 MHz, and 208.
220 MHz, in 1 Hz steps.
Factory programmable options for short lead time.
Best dynamic stability under airflow, thermal shock.
0.009 ppb/g or 0.1 ppb/g acceleration sensitivity.
±50 ppb stability over temperature, 0°C to 70°C.
±1 ppb/°C typical frequency slope (ΔF/ΔT).
1.5e-11 ADEV at 10 second averaging time.
No activity dips or micro jumps.
Resistant to shock, vibration and board bending.
On-ch.
