SiT5348 - Ultra-precision Super-TCXO

SiTime

📥 Download Datasheet

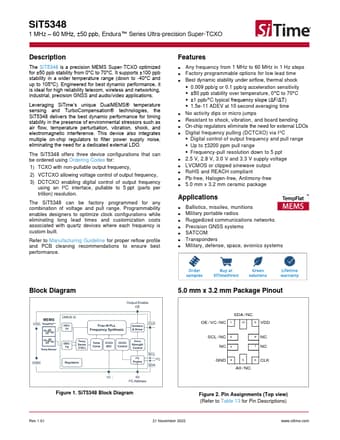

SiT5348 Datasheet Preview — Preview of SiT5348 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SiT5348
Manufacturer	SiTime
File Size	1.95 MB
Description	Ultra-precision Super-TCXO
Datasheet	SiT5348-SiTime.pdf

SiT5348 Product details

Description

The SiT5348 is a precision MEMS Super-TCXO optimized for ±50 ppb stability from 0°C to 70°C.

Features

Any frequency from 1 MHz to 60 MHz in 1 Hz steps.
Factory programmable options for low lead time.
Best dynamic stability under airflow, thermal shock.
0.009 ppb/g or 0.1 ppb/g acceleration sensitivity.
±50 ppb stability over temperature, 0°C to 70°C.
±1 ppb/°C typical frequency slope (ΔF/ΔT).
1.5e-11 ADEV at 10 second averaging time.
No activity dips or micro jumps.
Resistant to shock, vibration, and board bending.
On-chip regulators eliminate t.
