KSH13007AF - NPN Silicon Power Transistor

Datasheet Summary

Description

High voltage, high speed power switching Suitable for switching regulator, inverters motor controls

Features

  • VCBO = 700V.
  • VCEO = 400V.
  • VBEO = 9V.
  • IC = 8A TO-220 TO-220F 3 2 1 3 2 1 Ordering Information Ordering number KSH13007A KSH13007AF Package TO-220 TO-220F Pin Assignment 123 BCE BCE Packing Tube Tube hFE Classification Classification hFE.
  • Test Condition : VCE=5V,IC=2A R 15 ~ 28 O 26 ~ 39 Y 37 ~ 50 క͑΄Ͷ;ͺ͹΀Έ͑΃Ͷ·͟Ͳ͑͡͝ͿΠΧΖΞΓΖΣ͑ͣͥ͑͢͡ KSX13007A Series KSH13007A KSH13007AF NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 8A Absolute Maxim.

📥 Download Datasheet

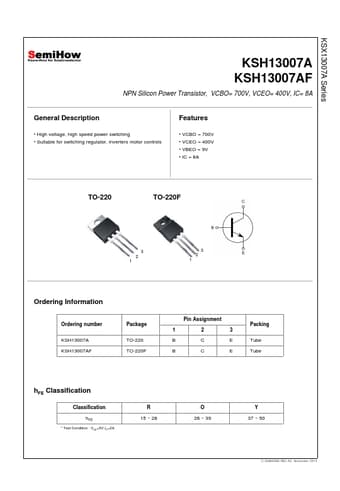

Datasheet preview – KSH13007AF

Datasheet Details

Part number KSH13007AF
Manufacturer SemiHow
File Size 242.66 KB
Description NPN Silicon Power Transistor
Datasheet download datasheet KSH13007AF Datasheet
Additional preview pages of the KSH13007AF datasheet.

📁 Similar Datasheet

  • KSH13007 - NPN Silicon Transistor (Shantou Huashan)
  • KSH13007F - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13007W - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13003 - High Voltage Power Transistor D-PACK (Fairchild Semiconductor)
  • KSH13003 - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13005 - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13005F - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13005W - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13009 - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13009F - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
Other Datasheets by SemiHow
  • KSH13007AF - Switch Mode series NPN silicon Power Transistor
  • KSH13007A - NPN Silicon Power Transistor
  • KSH13007A - Switch Mode series NPN silicon Power Transistor
  • KSH13007 - Switch Mode Series NPN Silicon Power Transistor
  • KSH13007F - Switch Mode series NPN silicon Power Transistor
  • KSH13003A - NPN Silicon Power Transistor
  • KSH13003A - High Voltage Switch Mode Applications
  • KSH13004 - Switch Mode series NPN silicon Power Transistor

Full PDF Text Transcription

Click to expand full text
KSX13007A Series KSH13007A KSH13007AF NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 8A General Description • High voltage, high speed power switching • Suitable for switching regulator, inverters motor controls Features • VCBO = 700V • VCEO = 400V • VBEO = 9V • IC = 8A TO-220 TO-220F 3 2 1 3 2 1 Ordering Information Ordering number KSH13007A KSH13007AF Package TO-220 TO-220F Pin Assignment 123 BCE BCE Packing Tube Tube hFE Classification Classification hFE * Test Condition : VCE=5V,IC=2A R 15 ~ 28 O 26 ~ 39 Y 37 ~ 50 క͑΄Ͷ;ͺ͹΀Έ͑΃Ͷ·͟Ͳ͑͡͝ͿΠΧΖΞΓΖΣ͑ͣͥ͑͢͡ KSX13007A Series KSH13007A KSH13007AF NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 8A Absolute Maximum Ratings TC=25୅ unless otherwise noted CHARACTERISTICS Collector-Base Voltage Collector-Emitter Vo
