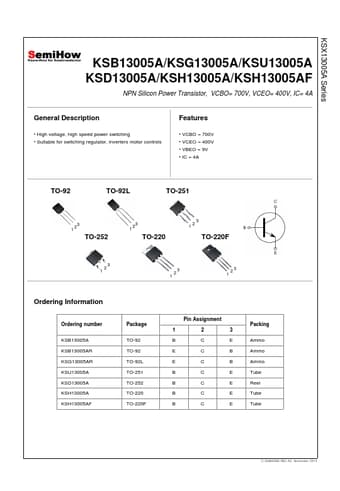

KSX13005A Series
KSB13005A/KSG13005A/KSU13005A KSD13005A/KSH13005A/KSH13005AF
NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 4A
General Description
• High voltage, high speed power switching • Suitable for switching regulator, inverters motor controls
Features
• VCBO = 700V • VCEO = 400V • VBEO = 9V • IC = 4A
TO-92
TO-92L
TO-251
1 23
TO-252
1 23
TO-220
3 12
TO-220F
23 1
Ordering Information
Ordering number
KSB13005A KSB13005AR KSG13005AR KSU13005A KSD13005A KSH13005A KSH13005AF
Package
TO-92 TO-92 TO-92L TO-251 TO-252 TO-220 TO-220F
23 1
23 1
Pin Assignment 123 BCE ECB ECB BCE BCE BCE BCE
Packing
Ammo Ammo Ammo Tube Reel Tube Tube
క͑΄Ͷ;ͺΈ͑Ͷ·͟Ͳ͑͡͝ͿΠΧΖΞΓΖΣ͑ͣͥ͑͢͡
KSX13005A Series
KSB13005A/KSG13005A/KSU13005A KSD13005A/KSH13005A/KSH13005AF
NPN Silicon Power Tr
