KSH13003 - High Voltage Power Transistor D-PACK

📥 Download Datasheet

Datasheet preview – KSH13003

Datasheet Details

Part number KSH13003
Manufacturer Fairchild Semiconductor
File Size 82.39 KB
Description High Voltage Power Transistor D-PACK
Datasheet download datasheet KSH13003 Datasheet
Additional preview pages of the KSH13003 datasheet.

📁 Similar Datasheet

  • KSH13003 - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13003A - NPN Silicon Power Transistor (SemiHow)
  • KSH13003A - High Voltage Switch Mode Applications (SemiHow)
  • KSH13004 - Switch Mode series NPN silicon Power Transistor (SemiHow)
  • KSH13004A - Switch Mode series NPN silicon Power Transistor (SemiHow)
  • KSH13005 - NPN SILICON TRANSISTOR (SHANTOU HUASHAN)
  • KSH13005A - NPN Silicon Power Transistor (SemiHow)
  • KSH13005A - Switch Mode series NPN silicon Power Transistor (SemiHow)
  • KSH13005AF - NPN Silicon Power Transistor (SemiHow)
  • KSH13005AF - Switch Mode series NPN silicon Power Transistor (SemiHow)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

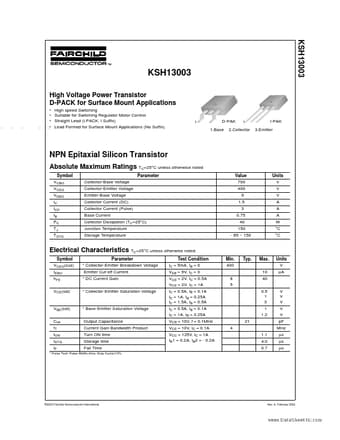

KSH13003 KSH13003 High Voltage Power Transistor D-PACK for Surface Mount Applications • • • a• High speed Switching Suitable for Switching Regulator Motor Control Straight Lead (I.PACK, I Suffix) Lead Formed t a S for h Surface e e Mount t Applications 4 U . (No c Suffix) o m 1 D-PAK 1.Base 1 I-PAK 3.Emitter w w w . D 2.Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base Current Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature Value 700 400 9 1.5 3 0.
