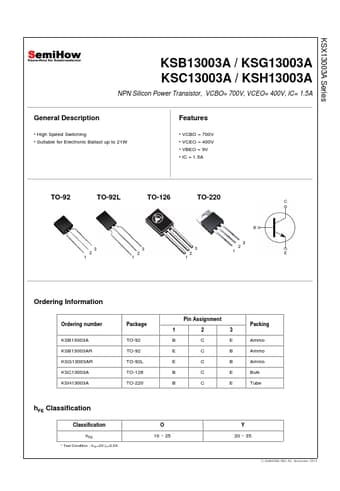

KSX13003A Series
KSB13003A / KSG13003A KSC13003A / KSH13003A
NPN Silicon Power Transistor, VCBO= 700V, VCEO= 400V, IC= 1.5A
General Description
• High Speed Switching • Suitable for Electronic Ballast up to 21W
Features
• VCBO = 700V • VCEO = 400V • VBEO = 9V • IC = 1.5A
TO-92
TO-92L
TO-126
TO-220
3 2 1
3 2 1
3 2 1
3 2 1
Ordering Information
Ordering number
KSB13003A KSB13003AR KSG13003AR KSC13003A KSH13003A
Package
TO-92 TO-92 TO-92L TO-126 TO-220
Pin Assignment 123 BCE ECB ECB BCE BCE
Packing
Ammo Ammo Ammo Bulk Tube
hFE Classification
Classification hFE
* Test Condition : VCE=2V,IC=0.5A
O 10 ~ 25
Y 20 ~ 35
