STESD07 Plastic Encapsulate ESD Protection Diodes

STESD07 Description

Elektronische Bauelemente STESD07 Plastic Encapsulate ESD Protection Diodes .
RoHS Compliant Product A suffix of “-HF” specifies halogen & lead-free The STESD07 is designed to protect voltage sensitive components from ESD.

STESD07 Applications

* where board space is at a premium. APPLICATIONS
* Stand-off voltage: 7V
* Low Leakage
* Response Ttime is Typically < 1 ns
* ESD Rating of Class 3 (>16kV) per Human Body Model
* IEC61000-4-2 level 4 ESD protection
* These are Pb-Free Devices DEVICE MARKING: X7 MAXIMUM RATI

📥 Download Datasheet

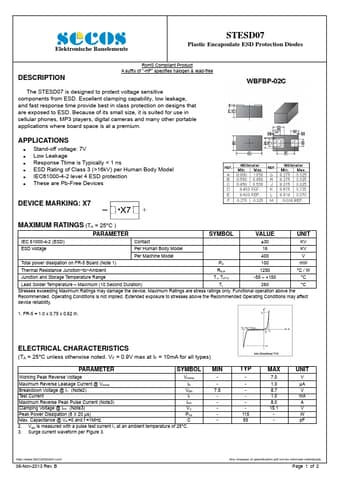

Preview of STESD07 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STESD07
Manufacturer
SeCoS
File Size
131.29 KB
Datasheet
STESD07-SeCoS.pdf
Description
Plastic Encapsulate ESD Protection Diodes
