STESD05CL Low Capacitance ESD Protection

STESD05CL Description

Elektronische Bauelemente STESD05CL 40W, 5V Low Capacitance ESD Protection (Bi-directional) RoHS Compliant Product A suffix of “-C” specifies haloge.
Designed to protect voltage sensitive electronic components from ESD and other transients.

STESD05CL Features

* Bi-directional ESD protection of one line
* Low capacitance: 12pF(Typ. )
* Low reverse stand
* off voltage: 5.0V
* Low reverse clamping voltage
* Low leakage current
* Excellent package:1.0mm×0.6mm×0.5mm
* Fast response time
* JESD22-A114-B ESD Rating of class

STESD05CL Applications

* such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. APPLICATIONS
* Computers and peripherals
* High speed data lines
* Audio and video equipment

📥 Download Datasheet

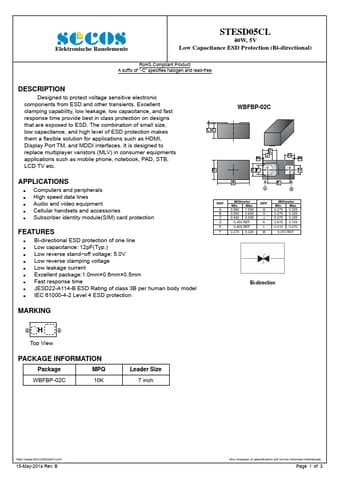

Preview of STESD05CL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STESD05CL
Manufacturer
SeCoS
File Size
408.61 KB
Datasheet
STESD05CL-SeCoS.pdf
Description
Low Capacitance ESD Protection
