STESD05 Plastic Encapsulate ESD Protection Diodes

STESD05 Description

Elektronische Bauelemente STESD05 Plastic Encapsulate ESD Protection Diodes .
RoHS Compliant Product A suffix of “-HF” specifies halogen & lead-free The STESD05 is designed to protect voltage sensitive components from ESD.

STESD05 Applications

* where board space is at a premium. APPLICATIONS
* Stand-off voltage: 5V
* Low Leakage
* Response Ttime is Typically < 1 ns
* ESD Rating of Class 3 (>16kV) per Human Body Model
* IEC61000-4-2 level 4 ESD protection
* These are Pb-Free Devices DEVICE MARKING: B MAXIMUM RATIN

📥 Download Datasheet

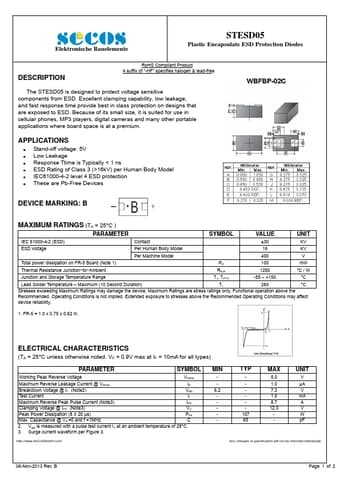

Preview of STESD05 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STESD05
Manufacturer
SeCoS
File Size
185.73 KB
Datasheet
STESD05-SeCoS.pdf
Description
Plastic Encapsulate ESD Protection Diodes
