STESD03 Plastic Encapsulate ESD Protection Diodes

STESD03 Description

Elektronische Bauelemente STESD03 Plastic Encapsulate ESD Protection Diodes .
RoHS Compliant Product A suffix of “-HF” specifies halogen & lead-free The STESD03 is designed to protect voltage sensitive components from ESD.

STESD03 Applications

* where board space is at a premium. APPLICATIONS
* Stand-off voltage: 3.3V
* Low Leakage
* Response Ttime is Typically < 1 ns
* ESD Rating of Class 3 (>16kV) per Human Body Model
* IEC61000-4-2 level 4 ESD protection
* These are Pb-Free Devices DEVICE MARKING: A MAXIMUM RAT

📥 Download Datasheet

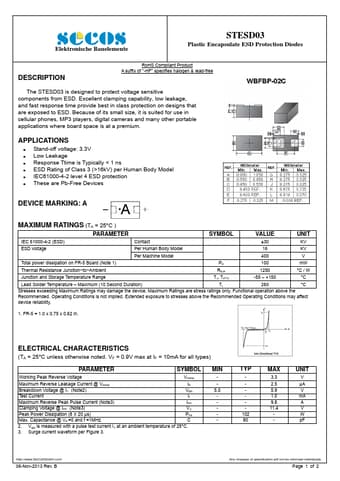

Preview of STESD03 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STESD03
Manufacturer
SeCoS
File Size
131.29 KB
Datasheet
STESD03-SeCoS.pdf
Description
Plastic Encapsulate ESD Protection Diodes
