2SD1712 - SILICON POWER TRANSISTOR

SavantIC

📥 Download Datasheet

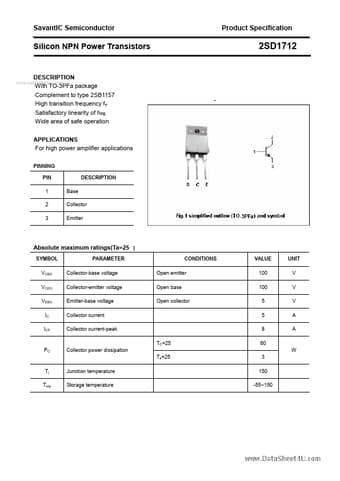

2SD1712 Datasheet Preview — Preview of 2SD1712 PDF

Datasheet Details

Part number	2SD1712
Manufacturer	SavantIC
File Size	148.57 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SD1712_SavantIC.pdf

2SD1712 Product details

Description

With TO-3PFa package Complement to type 2SB1157 High transition frequency fT Satisfactory linearity of hFE Wide area of safe operation APPLICATIONS For high power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak TC=25 PC Collector power dissipation Ta=25 Tj T
