2SC3180 - SILICON POWER TRANSISTOR

The 2SC3180 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC3180 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC3180
Manufacturer SavantIC
File Size 193.80 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3180_SavantIC.pdf
Additional preview pages of the 2SC3180 datasheet.

2SC3180 Product details

Description

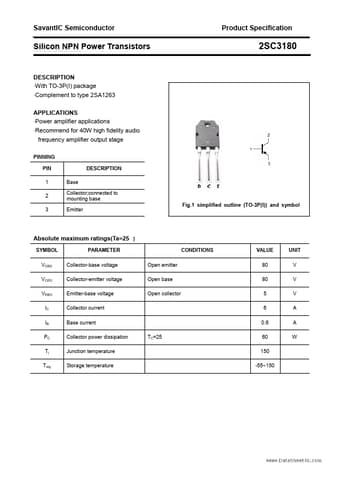

With TO-3P(I) package Complement to type 2SA1263 APPLICATIONS Power amplifier applications Recommend for 40W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3P(I)) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collect
