2SC3182 - NPN Transistor

Description

Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max.) @IC= 7A Good Linearity of hFE Complement to Type 2SA1265 Minimum Lot-to-Lot variations for robust device performance and reliable operation] APPLICATIONS Power amplifier applications Recommend for 70W high fidelit

📥 Download Datasheet

Datasheet preview – 2SC3182

📁 Similar Datasheet

  • 2SC3182 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3182 - Silicon NPN Transistor (Toshiba)
  • 2SC3182N - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3180 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3180 - Silicon NPN Transistor (Toshiba)
  • 2SC3180N - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3181 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3181 - Silicon NPN Transistor (Toshiba)
  • 2SC3181N - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3183 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

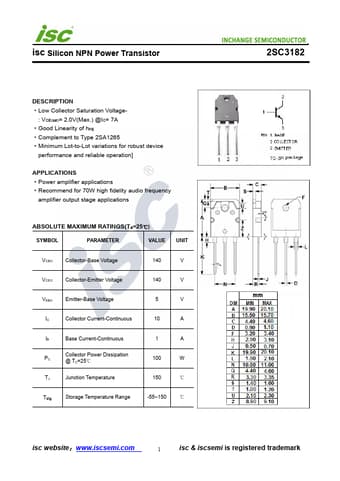

isc Silicon NPN Power Transistor DESCRIPTION ·Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max.) @IC= 7A ·Good Linearity of hFE ·Complement to Type 2SA1265 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation] APPLICATIONS ·Power amplifier applications ·Recommend for 70W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 140 V VCEO Collector-Emitter Voltage 140 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 10 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 1 A 100 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SC3182 isc website：www.iscsemi.
