2SC3146 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SC3146 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC3146
Manufacturer SavantIC
File Size 123.41 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3146_SavantIC.pdf

2SC3146 Product details

Description

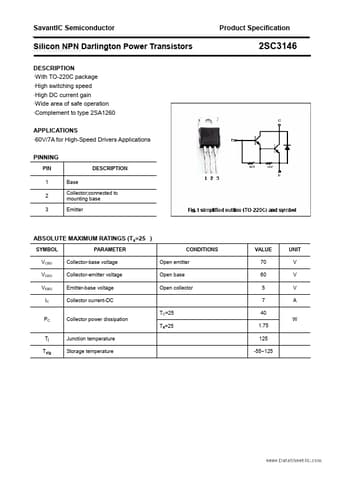

With TO-220C package High switching speed High DC current gain Wide area of safe operation Complement to type 2SA1260 APPLICATIONS 60V/7A for High-Speed Drivers Applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2SC3146 ABSOLUTE MAXIMUM RATINGS (Ta=25 ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current-DC TC=25 PC Collector power dissipation Ta=25 Tj
