2SC3152 - SILICON POWER TRANSISTOR

Description

With TO-3PN package High breakdown voltage (VCBO 900V) Fast switching speed Wide ASO Safe Operating Area APPLICATIONS 800V/3A Switching Regulator Applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DES

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	2SC3152
Manufacturer	SavantIC
File Size	239.33 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC3152 Datasheet
Additional preview pages of the 2SC3152 datasheet.

📁 Similar Datasheet

2SC3152 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
2SC3152 - NPN Transistor (INCHANGE)
2SC3150 - NPN Transistor (Sanyo Semicon Device)
2SC3150 - NPN Transistor (INCHANGE)
2SC3150A - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
2SC3151 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
2SC3151 - NPN Transistor (INCHANGE)
2SC3153 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
2SC3153 - NPN Transistor (INCHANGE)
2SC3156 - NPN Transistor (INCHANGE)

Other Datasheets by SavantIC

2SC3150 - SILICON POWER TRANSISTOR
2SC3151 - SILICON POWER TRANSISTOR
2SC3153 - SILICON POWER TRANSISTOR
2SC3156 - Silicon NPN Power Transistors
2SC3157 - SILICON POWER TRANSISTOR
2SC3159 - SILICON POWER TRANSISTOR
2SC3117 - SILICON POWER TRANSISTOR
2SC3144 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

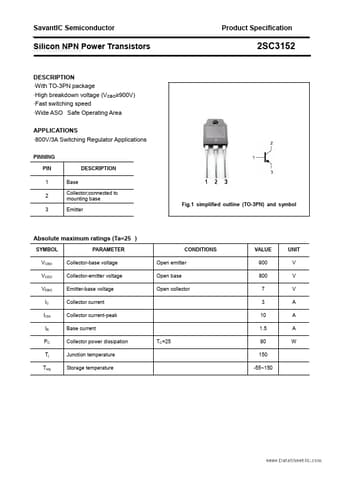

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3152 DESCRIPTION ·With TO-3PN package ·High breakdown voltage (VCBO 900V) ·Fast switching speed ·Wide ASO Safe Operating Area APPLICATIONS ·800V/3A Switching Regulator Applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 900 800 7 3 10 1.
