2SB824 - SILICON POWER TRANSISTOR

📥 Download Datasheet

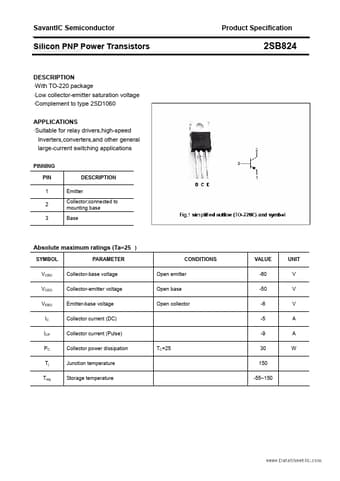

Preview of 2SB824 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB824
Manufacturer SavantIC
File Size 169.31 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB824_SavantIC.pdf

2SB824 Product details

Description

With TO-220 package Low collector-emitter saturation voltage Complement to type 2SD1060 APPLICATIONS Suitable for relay drivers,high-speed Inverters,converters,and other general large-current switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collect
