2SB1105 - SILICON POWER TRANSISTOR

📥 Download Datasheet

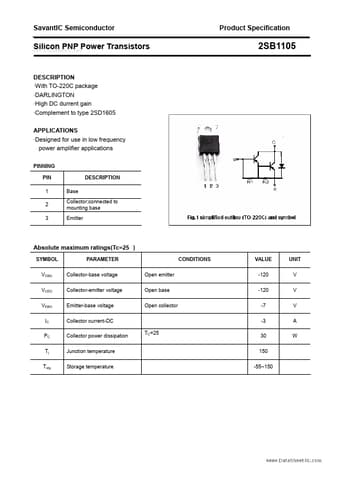

Preview of 2SB1105 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB1105
Manufacturer SavantIC
File Size 123.89 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1105_SavantIC.pdf

2SB1105 Product details

Description

With TO-220C package DARLINGTON High DC durrent gain Complement to type 2SD1605 APPLICATIONS Designed for use in low frequency power amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Tc=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current-DC Collector power dissipation Junction temperature Storage temperature
