2SB1134 - SILICON POWER TRANSISTOR

SavantIC

The 2SB1134 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

2SB1134 SILICON POWER TRANSISTOR by SavantIC - Datasheet Preview — Official preview page of the **2SB1134** SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number	2SB1134
Manufacturer	SavantIC
File Size	302.02 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SB1134_SavantIC.pdf

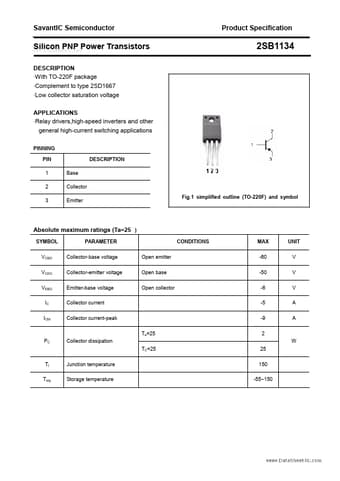

Additional preview pages of the 2SB1134 datasheet.

2SB1134 Product details

Description

With TO-220F package Complement to type 2SD1667 Low collector saturation voltage APPLICATIONS Relay drivers,high-speed inverters and other general high-current switching applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION 2SB1134 Fig.1 simplified outline (TO-220F) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Ta=
