2SB1135 - SILICON POWER TRANSISTOR

SavantIC

The 2SB1135 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

2SB1135 SILICON POWER TRANSISTOR by SavantIC - Datasheet Preview — Official preview page of the **2SB1135** SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number	2SB1135
Manufacturer	SavantIC
File Size	292.74 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SB1135_SavantIC.pdf
Additional preview pages of the 2SB1135 datasheet.

2SB1135 Product details

Description

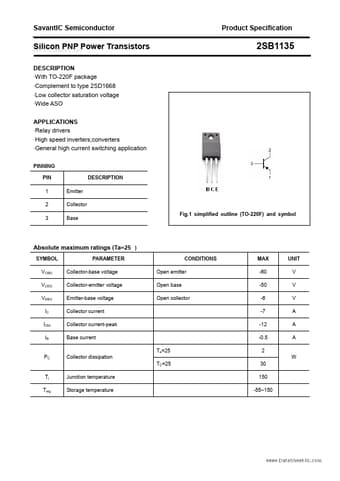

With TO-220F package Complement to type 2SD1668 Low collector saturation voltage Wide ASO APPLICATIONS Relay drivers High speed inverters;converters General high current switching application PINNING PIN 1 2 3 Emitter Collector Base DESCRIPTION 2SB1135 Fig.1 simplified outline (TO-220F) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current
