2SA1069A, 2SA1069 - Silicon POwer Transistors

SavantIC

📥 Download Datasheet

2SA1069A Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SA1069A, 2SA1069. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2SA1069A, 2SA1069
Manufacturer	SavantIC
File Size	131.15 KB
Description	Silicon POwer Transistors
Datasheet	2SA1069_SavantIC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SA1069A, 2SA1069. Please refer to the document for exact specifications by model.

2SA1069A Product details

Description

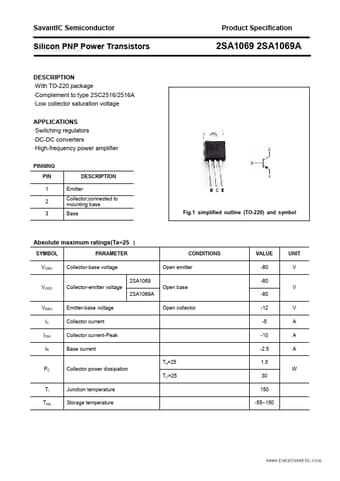

With TO-220 package Complement to type 2SC2516/2516A Low collector saturation voltage APPLICATIONS Switching regulators DC-DC converters High-frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PARAMETER Collector-base voltage 2SA1069 VCEO Collector-emitter voltage 2SA1069A VEBO IC ICM IB Emitter-base voltage Collector curr
