Part number 2SA1063
Manufacturer SavantIC
File Size 141.05 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA1063_SavantIC.pdf

2SA1063 Product details

Description

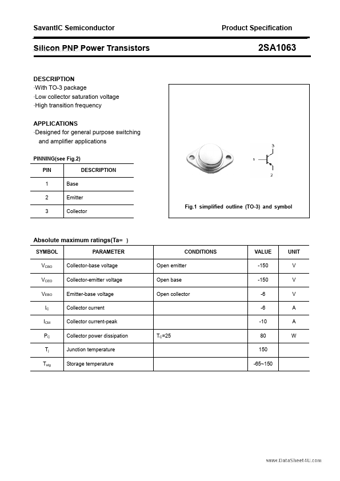

With TO-3 package Low collector saturation voltage High transition frequency APPLICATIONS Designed for general purpose switching and amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipat
