2SA1069A-Z - Silicon PNP Power Transistor

📥 Download Datasheet

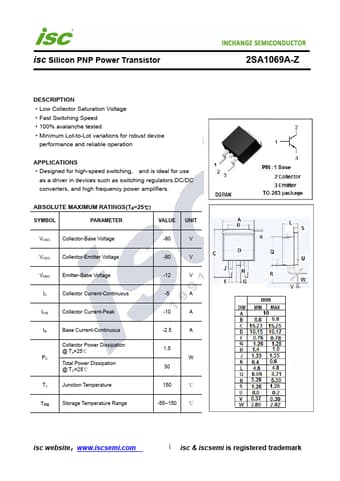

Preview of 2SA1069A-Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA1069A-Z
Manufacturer Inchange Semiconductor
File Size 182.79 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SA1069A-Z-InchangeSemiconductor.pdf

2SA1069A-Z Product details

Description

Low Collector Saturation Voltage Fast Switching Speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high-speed switching, and is ideal for use as a driver in devices such as switching regulators,DC/DC converters, and high frequency power amplifiers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -80
