2SA1065 - Silicon POwer Transistors

📥 Download Datasheet

Preview of 2SA1065 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA1065
Manufacturer SavantIC
File Size 140.83 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA1065_SavantIC.pdf

2SA1065 Product details

Description

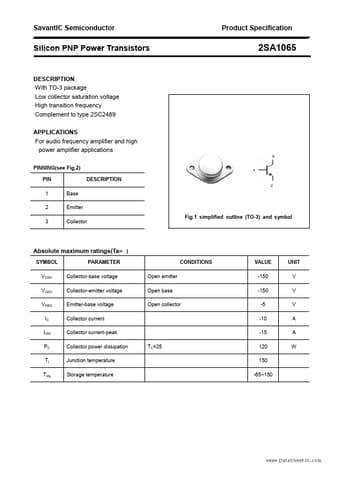

With TO-3 package Low collector saturation voltage High transition frequency Complement to type 2SC2489 APPLICATIONS For audio frequency amplifier and high power amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector cur
