C5045 2SC5045

C5045 Description

Ordering number:EN4783 NPN Triple Diffused Planar Silicon Transistor 2SC5045 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicatio.

C5045 Features

* High speed (tf=100ns typ).
* High reliability (Adoption of HVP process).
* High breakdown voltage (VCBO=1600V).
* Adoption of MBIT process. Package Dimensions unit:mm 2039D [2SC5045] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Absolute Maximum Ratings at Ta = 2

📥 Download Datasheet

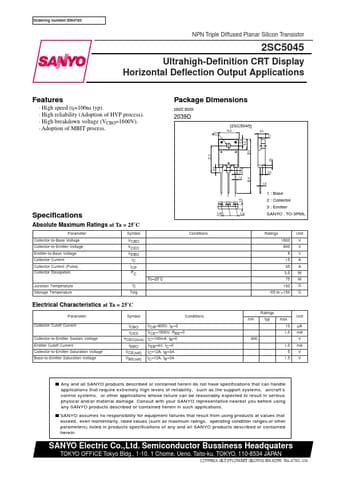

Preview of C5045 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5045
Manufacturer
Sanyo
File Size
106.64 KB
Datasheet
C5045-Sanyo.pdf
Description
2SC5045
