C5044 2SC5044

C5044 Description

Ordering number:EN4782A NPN Triple Diffused Planar Silicon Transistor 2SC5044 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicati.

C5044 Features

* High speed (tf=100ns typ).
* High reliability (HVP process).
* High breakdown voltage (VCBO=1600V).
* Adoption of MBIT process. Package Dimensions unit:mm 2039D [2SC5044] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Paramet

📥 Download Datasheet

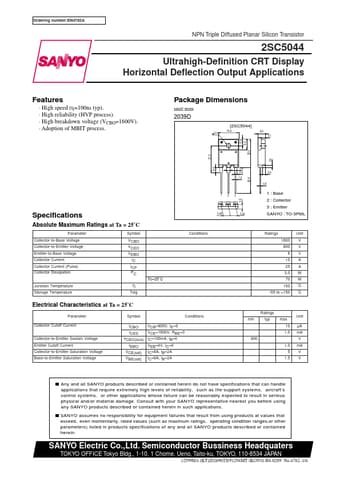

Preview of C5044 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5044
Manufacturer
Sanyo
File Size
104.45 KB
Datasheet
C5044-Sanyo.pdf
Description
2SC5044
