C5041 2SC5041

C5041 Description

Ordering number:EN4779 NPN Triple Diffused Planar Silicon Transistor 2SC5041 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicatio.

C5041 Features

* High speed (tf=100ns typ).
* High reliability (HVP process).
* High breakdown voltage (VCBO=1600V).
* Adoption of MBIT process.
* On-chip damper diode. Package Dimensions unit:mm 2039D [2SC5041] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Absolute Maximum R

📥 Download Datasheet

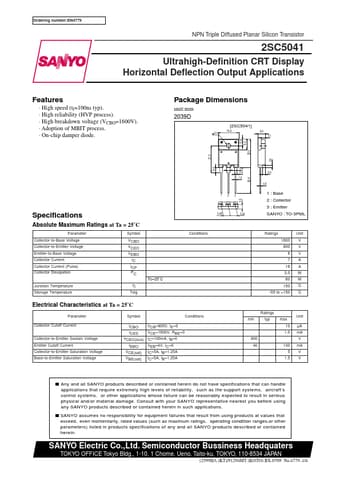

Preview of C5041 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5041
Manufacturer
Sanyo
File Size
100.10 KB
Datasheet
C5041-Sanyo.pdf
Description
2SC5041
