A1523 2SA1523

A1523 Description

Ordering number:EN2163A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1523/2SC3917 Switching Applications (with Bias Resistance) Applications .

A1523 Features

* On-chip bias resistance : R1=4.7kΩ, R2=4.7kΩ.
* Small-sized package : SPA.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1523/2SC3917] ( ) : 2SA1523 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit

A1523 Applications

* (with Bias Resistance) Applications

📥 Download Datasheet

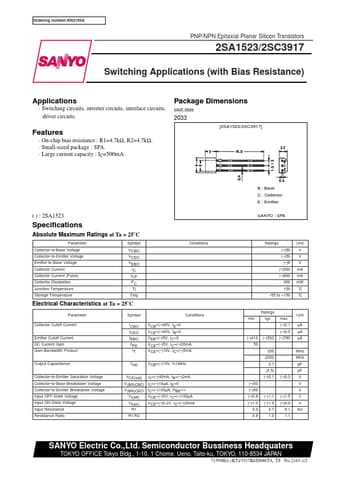

Preview of A1523 PDF
