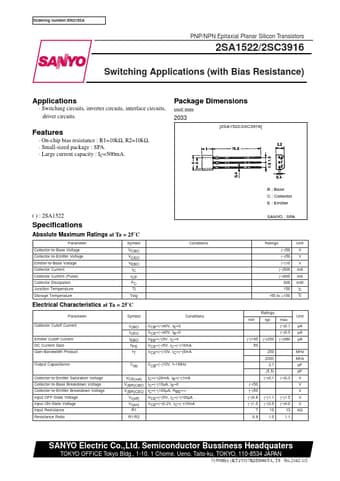

Ordering number:EN2162A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1522/2SC3916 Switching Applications (with Bias Resistance) Applications .

A1522 Features

* On-chip bias resistance : R1=10kΩ, R2=10kΩ.
* Small-sized package : SPA.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1522/2SC3916] ( ) : 2SA1522 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitte
