A152 - Attenuator Relay

Teledyne

General Description

The Series A152 highly repeatable ultraminiature attenuator relays are designed for attenuating RF signals in 50-ohm systems over a frequency range from DC to 5 GHz.

Their low profile and small grid spacing makes them ideal for use when packaging density is a prime consideration.

📥 Download Datasheet

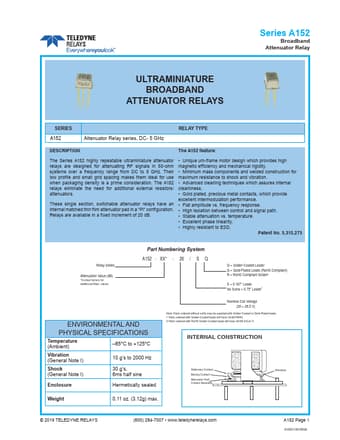

A152 attenuator relay by Teledyne - Datasheet Preview
