A1521 2SA1521

A1521 Description

Ordering number:EN2166 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1521/2SC3915 Switching Applications (with Bias Resistance) Applications *.

A1521 Features

* On-chip bias resistance : R1=2.2kΩ, R2=2.2kΩ.
* Small-sized package : CP.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2018A [2SA1521/2SC3915] ( ) : 2SA1521 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit

A1521 Applications

* (with Bias Resistance) Applications

📥 Download Datasheet

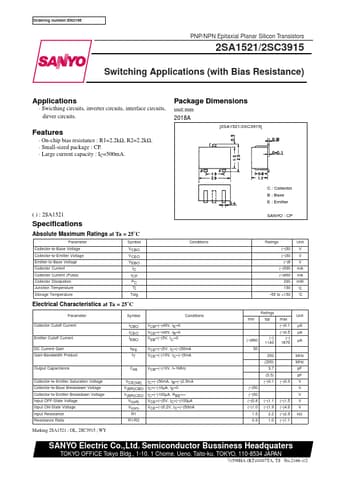

Preview of A1521 PDF
datasheet Preview Page 2

Datasheet Details

Part number
A1521
Manufacturer
Sanyo
File Size
44.92 KB
Datasheet
A1521-Sanyo.pdf
Description
2SA1521
