A1404 2SA1404

A1404 Description

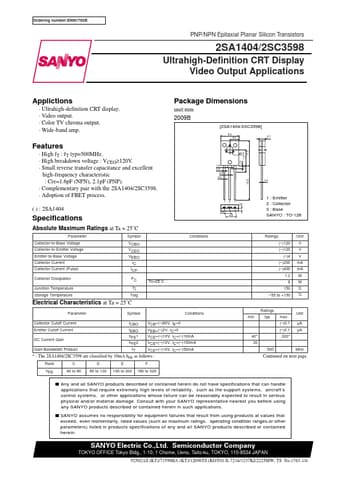

Ordering number:ENN1763B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1404/2SC3598 Ultrahigh-Definition CRT Display Video Output Applications App.

A1404 Features

* High fT : fT typ=500MHz.
* High breakdown voltage : VCEO≥120V.
* Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=1.6pF (NPN), 2.1pF (PNP).
* Complementary pair with the 2SA1404/2SC3598.
* Adoption of FBET process. ( ) : 2SA1404 Specification

A1404 Applications

* Applictions
* Ultrahigh-definition CRT display.
* Video output.
* Color TV chroma output.
