A1423, A1421 High Precision Hall Effect AC-Coupled Differential Sensor

A1423 Description

A1421, A1422, and A1423 High Precision Hall-Effect AC-Coupled Differential Sensor IC with Integrated Filter Capacitor .
The A1421, A1422, and A1423 are AC-coupled Hall-effect sensor ICs which include monolithic integrated circuits that switch in response to changing dif.

A1423 Features

* Integrated tracking capacitor
* Used for sensing motion of ring magnet or ferrous targets
* Wide operating temperature range
* Operation with magnetic input signal frequency from 20 Hz to 30 kHz
* EMI/ESD-resistant
* Large effective air gaps

A1423 Applications

* including automotive transmission and crankshaft speed sensing. The device package has an operating ambient temperature range
* 40°C to 150°C , and is provided in a 4-pin plastic SIP. Each package is available in a lead (Pb) free version (suffix,
* T) , with a 100% matte tin plated le

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A1423, A1421. Please refer to the document for exact specifications by model.

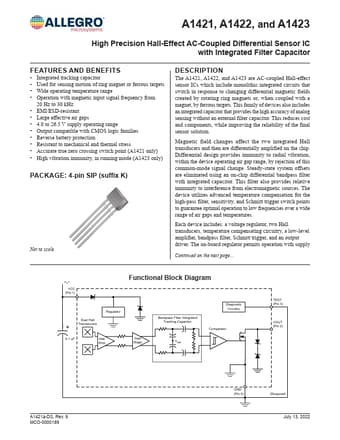

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1423, A1421
Manufacturer
Allegro MicroSystems
File Size
1.15 MB
Datasheet
A1421_AllegroMicroSystems.pdf
Description
High Precision Hall Effect AC-Coupled Differential Sensor
Note
This datasheet PDF includes multiple part numbers: A1423, A1421.
Please refer to the document for exact specifications by model.
