A1407 2SA1407

A1407 Description

Ordering number : EN1766D 2SA1407 / 2SC3601 SANYO Semiconductors DATA SHEET PNP / NPN Epitaxial Planar Silicon Transistors 2SA1407 / 2SC3601 Appli.

A1407 Features

* High fT : fT typ=400MHz. High breakdown voltage : VCEO≥200V. Small reverce transfer capacitance and excellent high frequency characteristics : Cre=2.0pF(NPN), 2.5pF(PNP). Complementary PNP and NPN types. Adoption of FBET process. Specifications ( )

📥 Download Datasheet

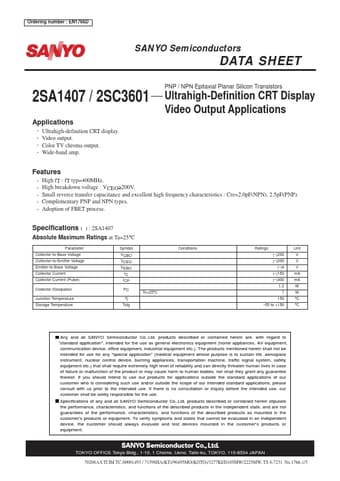

Preview of A1407 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1407
Manufacturer
Sanyo Semicon Device
File Size
48.35 KB
Datasheet
A1407-SanyoSemiconDevice.pdf
Description
2SA1407
