A14100A - HiRel FPGAs

Download the A14100A datasheet PDF. This datasheet also covers the A1425A variant, as both devices belong to the same hirel fpgas family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • and performance required for today’s complex, high-speed digital logic systems. The 3200DX family offers the industry’s fastest dual-port SRAM for implementing fast FIFOs, LIFOs, and temporary data storage. A CT 2 De sc r i p t i o n The ACT 2 family is the second-generation Actel FPGA family. This family offers the best-value, high-capacity devices, ranging from 4,000 to 8,000 gates, with system performance up to 40 MHz over the military temperature range. The devices have two routed array clo.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (A1425A-Actel.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number A14100A
Manufacturer Actel
File Size 554.28 KB
Description HiRel FPGAs
Datasheet download datasheet A14100A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A141 Tetrode Philips
A1413 PNP SILICON TRIPLE DIFFUSED TRANSISTOR NEC
A1415 2SA1415 Sanyo
A1416 2SA1416 Sanyo
A1417 2SA1417 Sanyo

Other Datasheets by Actel

Part Number Description
A1425A HiRel FPGAs
A1460A HiRel FPGAs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

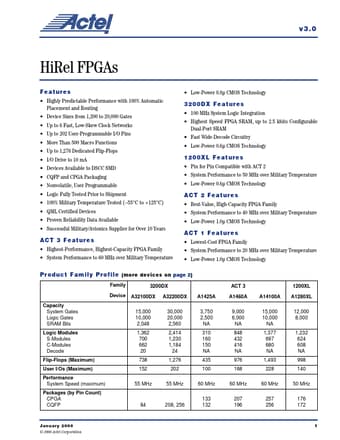

v3.0 HiRel FPGAs Fe a t ur es • Low-Power 0.8µ CMOS Technology 32 0 0D X Fe a t ur es • Highly Predictable Performance with 100% Automatic Placement and Routing • Device Sizes from 1,200 to 20,000 Gates • Up to 6 Fast, Low-Skew Clock Networks • Up to 202 User-Programmable I/O Pins • • • • • • • • • More Than 500 Macro Functions Up to 1,276 Dedicated Flip-Flops I/O Drive to 10 mA Devices Available to DSCC SMD CQFP and CPGA Packaging Nonvolatile, User Programmable Logic Fully Tested Prior to Shipment 100% Military Temperature Tested (–55°C to +125°C) QML Certified Devices • 100 MHz System Logic Integration • Highest Speed FPGA SRAM, up to 2.5 kbits Configurable Dual-Port SRAM • Fast Wide-Decode Circuitry • Low-Power 0.
