A1425 - High Accuracy Analog Speed Sensor

Description

The A1425 AC-coupled Hall-effect sensor IC is a monolithic integrated circuit that switches in response to changing differential magnetic fields created by rotating ring magnets and, when coupled with a magnet, by ferrous targets.

Features

  • Used in sensing motion of ring magnet or ferrous targets.
  • Integrated filter capacitor.
  • Wide operating temperature range.
  • Operation with magnetic input signal frequency from 20 Hz to 20 kHz.
  • Resistant to EMI.
  • Large effective air gaps.
  • 4.0 to 26.5 V supply operating range.
  • Output compatible with both TTL and CMOS logic families.
  • Reverse battery protection.
  • Resistant to mechanical and thermal stress.
  • Accurate true zero-crossing switch point PA.

📥 Download Datasheet

Datasheet Details

Part number A1425
Manufacturer Allegro MicroSystems
File Size 701.48 KB
Description High Accuracy Analog Speed Sensor
Datasheet download datasheet A1425 Datasheet

📁 Similar Datasheet

  • A1425A - HiRel FPGAs (Actel)
  • A1423 - PNP/NPN Silicon Transistor (Sanyo)
  • A1402 - 2SA1402 (Sanyo)
  • A1403 - 2SA1403 (Sanyo)
  • A1404 - 2SA1404 (Sanyo)
  • A1405 - 2SA1405 (Sanyo)
  • A1406 - 2SA1406 (Sanyo)
  • A1407 - 2SA1407 (Sanyo Semicon Device)
  • A1408 - 2SA1408 (Toshiba Semiconductor)
  • A141 - Tetrode (Philips)
Other Datasheets by Allegro MicroSystems
  • A1421 - High Precision Hall Effect AC-Coupled Differential Sensor
  • A1422 - High Precision Hall Effect AC-Coupled Differential Sensor
  • A1423 - High Precision Hall Effect AC-Coupled Differential Sensor
  • A1441 - Low-Voltage Full-Bridge Brushless DC Motor Driver
  • A1442 - Low Voltage Full Bridge Brushless DC Motor Driver
  • A1448 - Low-Voltage Full-Bridge Brushless DC Motor Driver
  • A1468 - Three-Wire True Zero-Speed Differential Peak-Detecting Sensor

Full PDF Text Transcription

Click to expand full text

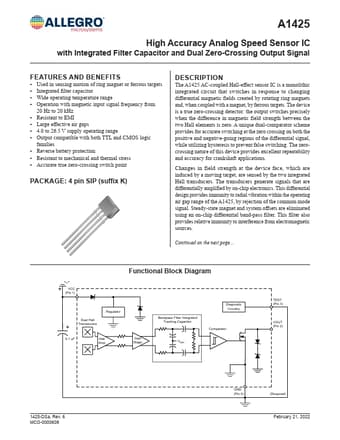

A1425 High Accuracy Analog Speed Sensor IC with Integrated Filter Capacitor and Dual Zero-Crossing Output Signal FEATURES AND BENEFITS ▪ Used in sensing motion of ring magnet or ferrous targets ▪ Integrated filter capacitor ▪ Wide operating temperature range ▪ Operation with magnetic input signal frequency from 20 Hz to 20 kHz ▪ Resistant to EMI ▪ Large effective air gaps ▪ 4.0 to 26.
