2SB1136 - PNP Transistor

Name: 2SB1136
SKU: 2SB1136-70384

Sanyo Semicon Device

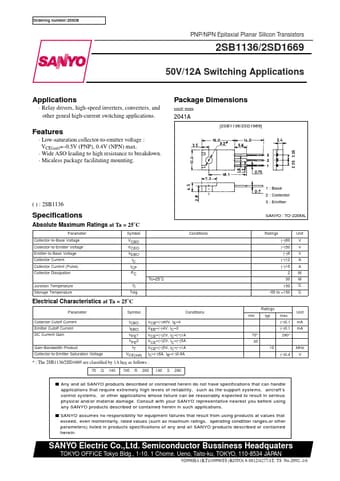

The 2SB1136 by Sanyo Semicon Device is a PNP Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SB1136
Manufacturer	Sanyo Semicon Device
File Size	104.61 KB
Description	PNP Transistor
Datasheet	2SB1136_SanyoSemiconDevice.pdf
Additional preview pages of the 2SB1136 datasheet.

Low-saturation collector-to-emitter voltage : VCE(sat)=.
0.5V (PNP), 0.4V (NPN) max.
Wide ASO leading to high resistance to breakdown.
Micaless package facilitating mounting. Package Dimensions unit:mm 2041A [2SB1136/2SD1669] ( ) : 2SB1136 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Symbol VCBO VCEO VEBO.
