2SB1134 - PNP Transistor

Features

  • Low-saturation collector-to-emitter voltage : VCE(sat)=.
  • 0.4V max/IC=(.
  • )3A, IB=(.
  • )0.3A.
  • Micaless package facilitating mounting. Package Dimensions unit:mm 2041A [2SB1134/2SD1667] ( ) : 2SB1134 1 : Base 2 : Collector 3 : Emitter Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Symbol VCBO VCEO VEBO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1134 PNP Transistor INCHANGE
2SB1134 SILICON POWER TRANSISTOR SavantIC
2SB1130AM Epitaxial Planar PNP Silicon Transistor Rohm
2SB1132 PNP Transistor Rohm
2SB1132 PNP Transistor HOTTECH

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SB1131 PNP Transistor
2SB1135 PNP Transistor
2SB1136 PNP Transistor
2SB1118 PNP Transistor
2SB1119 PNP Transistor

Full PDF Text Transcription

Click to expand full text

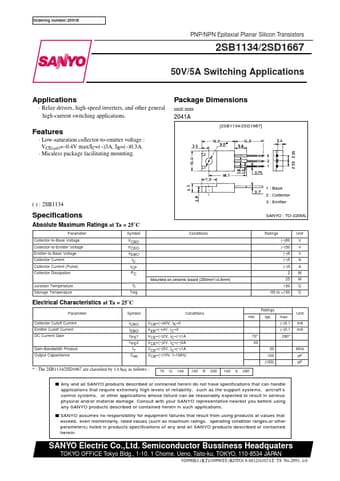

Ordering number:2091B PNP/NPN Epitaxial Planar Silicon Transistors 2SB1134/2SD1667 50V/5A Switching Applications Applications · Relay drivers, high-speed inverters, and other general high-current switching applications. Features · Low-saturation collector-to-emitter voltage : VCE(sat)=–0.4V max/IC=(–)3A, IB=(–)0.3A. · Micaless package facilitating mounting.
