CTLD-4204S - Fast Recovery and High Power Diode

CTLD-4204S Description

VRM = 400 V, IF(AV) = 20 A, trr = 50 ns(max.) Fast Recovery and High Power Diode CTLD-4204S .

CTLD-4204S Features

* The CTLD-4204S is a fast recovery diode which realize a peak reverse voltage of 400 V, a typical forward voltage drop of 1.25 V and typical trr of 22 ns optimizing a life-time control. It has the characteristics suit for PFC circuit of CCM. The low thermal resistance package achieves high performanc

CTLD-4204S Applications

* For PFC Circuit (CCM)
* For White Goods
* For Telecommunication Device, etc. Absolute Maximum Ratings
* Unless otherwise specified, TA is 25 °C Parameter Peak Repetitive Reverse Voltage Average Forward Current Surge Forward Current I2t Limiting Value Junction Temperature Storage T

📥 Download Datasheet

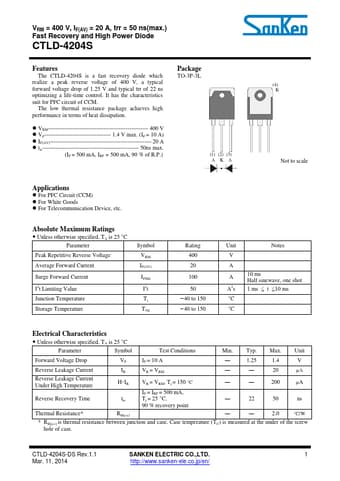

Preview of CTLD-4204S PDF
