CTLD-6206S - Fast Recovery and High Power Diode

Features

  • The CTLD-6206S is a high power diode of the low-noise and low loss which realize a peak reverse voltage of 600 V. Typical forward voltage drop of 1.4 V is realized by optimizing the relationship of trade-off between VF and trr. It has the characteristics suit for PFC circuit of CCM. The low thermal resistance package achieves high performance in terms of heat dissipation.
  • VRM------------------------------------------------------ 600 V.
  • VF------------------------------------ 1.7 V max.

📥 Download Datasheet

Datasheet Details

Part number CTLD-6206S
Manufacturer Sanken
File Size 433.59 KB
Description Fast Recovery and High Power Diode
Datasheet download datasheet CTLD-6206S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CTLDM303N-M832DS SURFACE MOUNT DUAL N-CHANNEL ENHANCEMENT-MODE SILICON MOSFET Central Semiconductor
CTLDM7590 SURFACE MOUNT P-CHANNEL ENHANCEMENT-MODE SILICON MOSFET Central Semiconductor
CTLDM8002A-M621 SURFACE MOUNT P-CHANNEL ENHANCEMENT-MODE SILICON MOSFET Central Semiconductor
CTLDM8120-M832D SURFACE MOUNT DUAL P-CHANNEL ENHANCEMENT-MODE SILICON MOSFET Central Semiconductor
CTL-10-S50-30F-CL Clamp-on type AC Current Sensor PRC Technologies

Other Datasheets by Sanken

Part Number Description
CTLD-4204S Fast Recovery and High Power Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

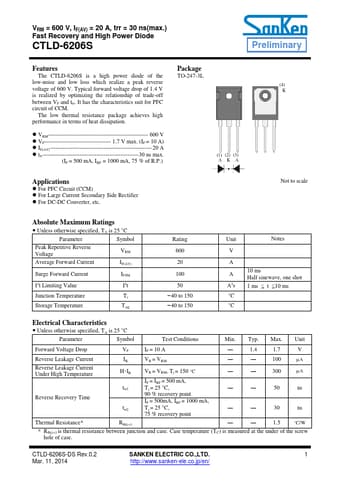

VRM = 600 V, IF(AV) = 20 A, trr = 30 ns(max.) Fast Recovery and High Power Diode CTLD-6206S Preliminary Features The CTLD-6206S is a high power diode of the low-noise and low loss which realize a peak reverse voltage of 600 V. Typical forward voltage drop of 1.4 V is realized by optimizing the relationship of trade-off between VF and trr. It has the characteristics suit for PFC circuit of CCM. The low thermal resistance package achieves high performance in terms of heat dissipation.  VRM------------------------------------------------------ 600 V  VF------------------------------------ 1.7 V max. (IF = 10 A)  IF(AV)------------------------------------------------------- 20 A  trr----------------------------------------------------30 ns max. (IF = 500 mA, IRP = 1000 mA, 75 % of R.P.
