K4S643232H-TC-L55, K4S643232H-TC-L70 - 64Mb H-die (x32) SDRAM

K4S643232H-TC-L55 Description

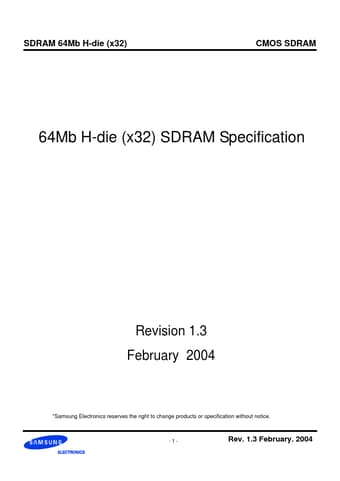

SDRAM 64Mb H-die (x32) CMOS SDRAM 64Mb H-die (x32) SDRAM Specification Revision 1.3 February 2004 *Samsung Electronics reserves the right to ch.
The K4S643232H is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits, fabricated with SAMSUNG′s high per.

K4S643232H-TC-L55 Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

K4S643232H-TC-L55 Applications

* Ordering Information Part No. K4S643232H-TC/L70 K4S643232H-TC/L60 K4S643232H-TC/L55 K4S643232H-TC/L50 Orgainization 512K x 32 Max Freq. 143MHz(CL=3) 166MHz(CL=3) 183MHz(CL=3) 200MHz(CL=3) Interface LVTTL Package 86pin TSOP(II) Organization 2Mx32 Row Address A0~A10 Column Address A0-A7 Row

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: K4S643232H-TC-L55, K4S643232H-TC-L70. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K4S643232H-TC-L55, K4S643232H-TC-L70
Manufacturer
Samsung
File Size
115.47 KB
Datasheet
K4S643232H-TC-L70-Samsung.pdf
Description
64Mb H-die (x32) SDRAM
Note
This datasheet PDF includes multiple part numbers: K4S643232H-TC-L55, K4S643232H-TC-L70.
Please refer to the document for exact specifications by model.
