K4D263238A - 1M x 32Bit x 4 Banks Double Data Rate Synchronous DRAM

Samsung

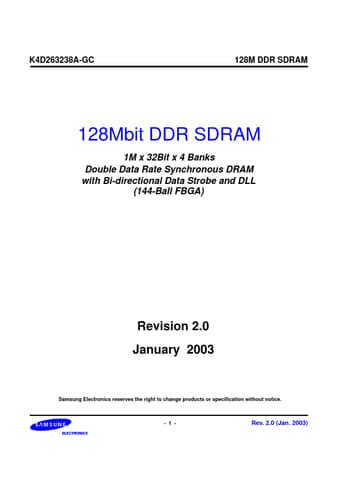

K4D263238A Datasheet Preview — Preview of K4D263238A PDF

Datasheet Details

Part number	K4D263238A
Manufacturer	Samsung
File Size	298.15 KB
Description	1M x 32Bit x 4 Banks Double Data Rate Synchronous DRAM
Datasheet	K4D263238A_Samsungsemiconductor.pdf

K4D263238A Product details

Description

FOR 1M x 32Bit x 4 Bank DDR SDRAM The K4D263238A is 134,217,728 bits of hyper synchronous data rate Dynamic RAM organized as 4 x1,048,576 words by 32 bits, fabricated with

Features

2.5V + 5% power supply for device operation.
2.5V + 5% power supply for I/O interface.
SSTL_2 compatible inputs/outputs.
4 banks operation.
MRS cycle with address key programs -. Read latency 3,4,5 (clock) -. Burst length (2, 4, 8 and Full page) -. Burst type (sequential & interleave).
Full page burst length for sequential burst type only.
Start address of the full page burst should be even.
All inputs except data & DM are.
