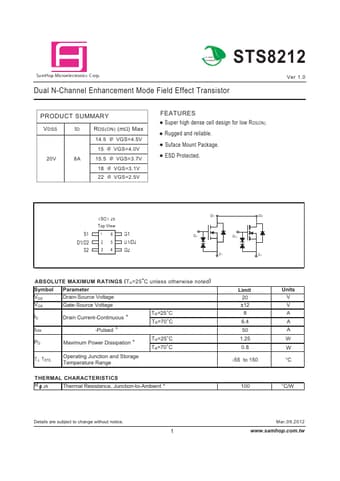

STS8212
Ver 1.0
S a mHop Microelectronics C orp.
Dual N-Channel Enhancement Mode Field Effect Transistor
PRODUCT SUMMARY
V DSS ID R DS(ON) (m Ω) Max
14.5 @ VGS=4.5V 15 @ VGS=4.0V 20V 8A 15.5 @ VGS=3.7V 18 @ VGS=3.1V 22 @ VGS=2.5V
FEATURES Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ESD Protected.
TSOT 26 Top View
D1
D2
S1 D1/D2 S2
1 2 3
6 5 4
G1 D1/D2 G2
G1
G2
S1
S2
ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous -Pulsed
b a
Limit 20 ±12 TA=25°C TA=70°C TA=25°C TA=70°C 8 6.4 50
a
Units V V A A A W W °C
Maximum Power Dissipation
1.25 0.
STS8212 Datasheet
