STU9NB80 - N-channel Power MOSFET

STU9NB80 Description

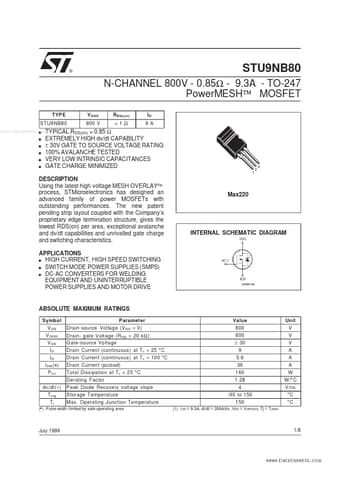

® STU9NB80 N-CHANNEL 800V - 0.85Ω - 9.3A - TO-247 PowerMESH™ MOSFET TYPE STU9NB80 s s s s s V DSS 800 V R DS(on) <1Ω ID 9 A www.DataSheet4U.com .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STU9NB80 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE Max220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) Ts tg Tj
