STU9N60M2 - N-channel Power MOSFET

STU9N60M2 Description

STD9N60M2, STP9N60M2, STU9N60M2 Datasheet N-channel 600 V, 0.72 Ω typ., 5.5 A, MDmesh™ M2 Power MOSFETs in DPAK, TO-220 and IPAK packages TAB DPAK .
These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology.

STU9N60M2 Features

* Order codes VDS @ TJmax RDS(on) max. ID STD9N60M2 STP9N60M2 650 V 0.78 Ω 5.5 A STU9N60M2
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested

📥 Download Datasheet

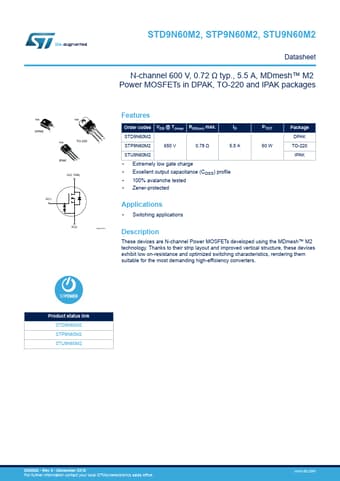

Preview of STU9N60M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
