STTH30RQ06L2Y Automotive 600V 30A ultrafast high voltage rectifier

STTH30RQ06L2Y Description

STTH30RQ06L2Y Datasheet Automotive 600 V, 30 A ultrafast high voltage rectifier A A A A A .
Housed in a HU3PAK package, this 600 V, 30 A device uses ST 600 V technology.

STTH30RQ06L2Y Features

* K AAAA A NCNC K HU3PAK Product status link STTH30RQ06L2Y Product summary IF(AV) 30 A VRRM 600 V VF (typ. ) 1.45 V trr (max. ) 30 ns Tj -40 °C to +175 °C
* AEC-Q101 qualified
* High junction temperature capability
* Ultrafast switching
* Low reverse current

STTH30RQ06L2Y Applications

* DC/DC converter
* On board charger

📥 Download Datasheet

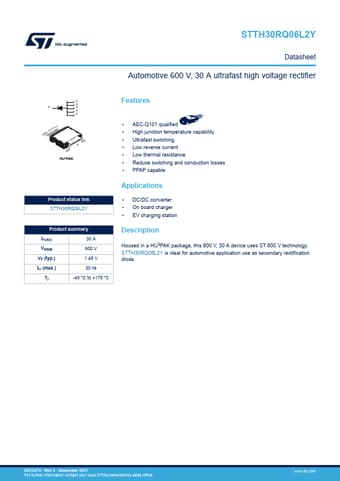

Preview of STTH30RQ06L2Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
