STTH30R04, Ultrafast recovery diode

STTH30R04 Ultrafast recovery diode Main product characteristics IF(AV) VRRM Tj VF (typ) trr 30 A 400 V 175° C 0.97 V 24 ns K A A K A K .
The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intr.

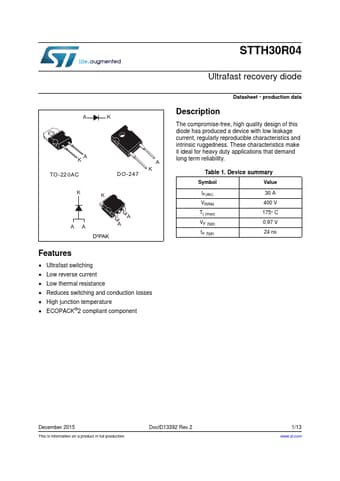

STTH30R04_STMicroelectronics.pdf

STTH30R04 Datasheet Preview — Preview of STTH30R04 PDF

Datasheet Details

Part number:

STTH30R04

Manufacturer:

STMicroelectronics ↗

File Size:

367.50 KB

Description:

Ultrafast recovery diode

Features

* TO-220AC STTH30R04D K DO-247 STTH30R04W Ultrafast switching Low reverse current Low thermal resistance Reduces switching and conduction losses High junction temperature Insulated package: DOP3I
* Electrical insulation = 2500 VRMS Package capacitance = 1

Applications

* that demand long term reliability. Table 1. Symbol VRRM IF(RMS) IF(AV) IFRM IFSM Tstg Tj Repetitive peak reverse voltage RMS forward current Average forward current, δ = 0.5 Repetitive peak forward current Order codes Part Number STTH30R04D STTH30R04G STTH30R04G-TR STTH30R04W STTH30R04PI Marking ST
