STTH30R02DJF Ultrafast recovery diode high efficiency

STTH30R02DJF Description

Product status STTH30R02DJF Product summary IF(AV) 30 A VRRM 200 V Tj(max.) 175 °C VF(typ.) 0.8 V trr(typ.) 27 ns STTH30R02DJF Datasheet 2.
High performance diode suited for high frequency DC to DC converters.

STTH30R02DJF Features

* Suited for DC/DC converts
* Low losses
* High Tj
* High surge current capability
* High energy avalanche capability
* Thin package: 1 mm

STTH30R02DJF Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

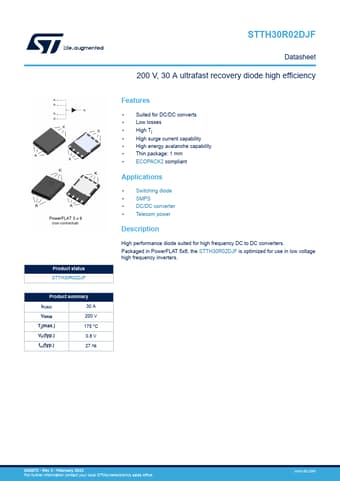

Preview of STTH30R02DJF PDF
datasheet Preview Page 2 datasheet Preview Page 3
