STTH30RQ06-Y Automotive turbo 2 ultrafast high voltage rectifier

STTH30RQ06-Y Description

STTH30RQ06-Y Datasheet Automotive turbo 2 ultrafast high voltage rectifier K K A K KA D²PAK NC AA D²PAK HV NC K DO-247 A K A K TO-220AC Produ.
The STTH30RQ06-Y has been developed to be used in application requiring a highvoltage secondary rectification for LLC Full Bridge topology.

STTH30RQ06-Y Features

* AEC-Q101 qualified
* High junction temperature capability
* Ultrafast with soft recovery behavior
* Low reverse current
* Low thermal resistance
* Reduce switching and conduction losses
* PPAP capable
* D²PAK HV creepage distance (ano

STTH30RQ06-Y Applications

* Output rectification
* PFC
* UPS
* Air conditioning

📥 Download Datasheet

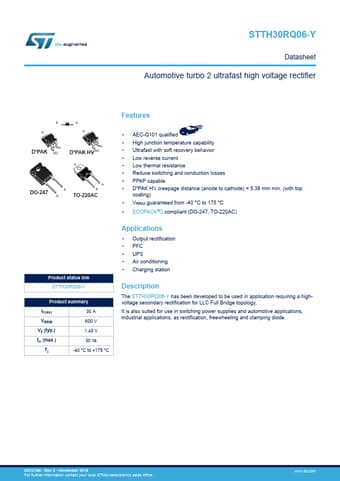

Preview of STTH30RQ06-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
